Divisible Joist hanger Left and Right ZPRO

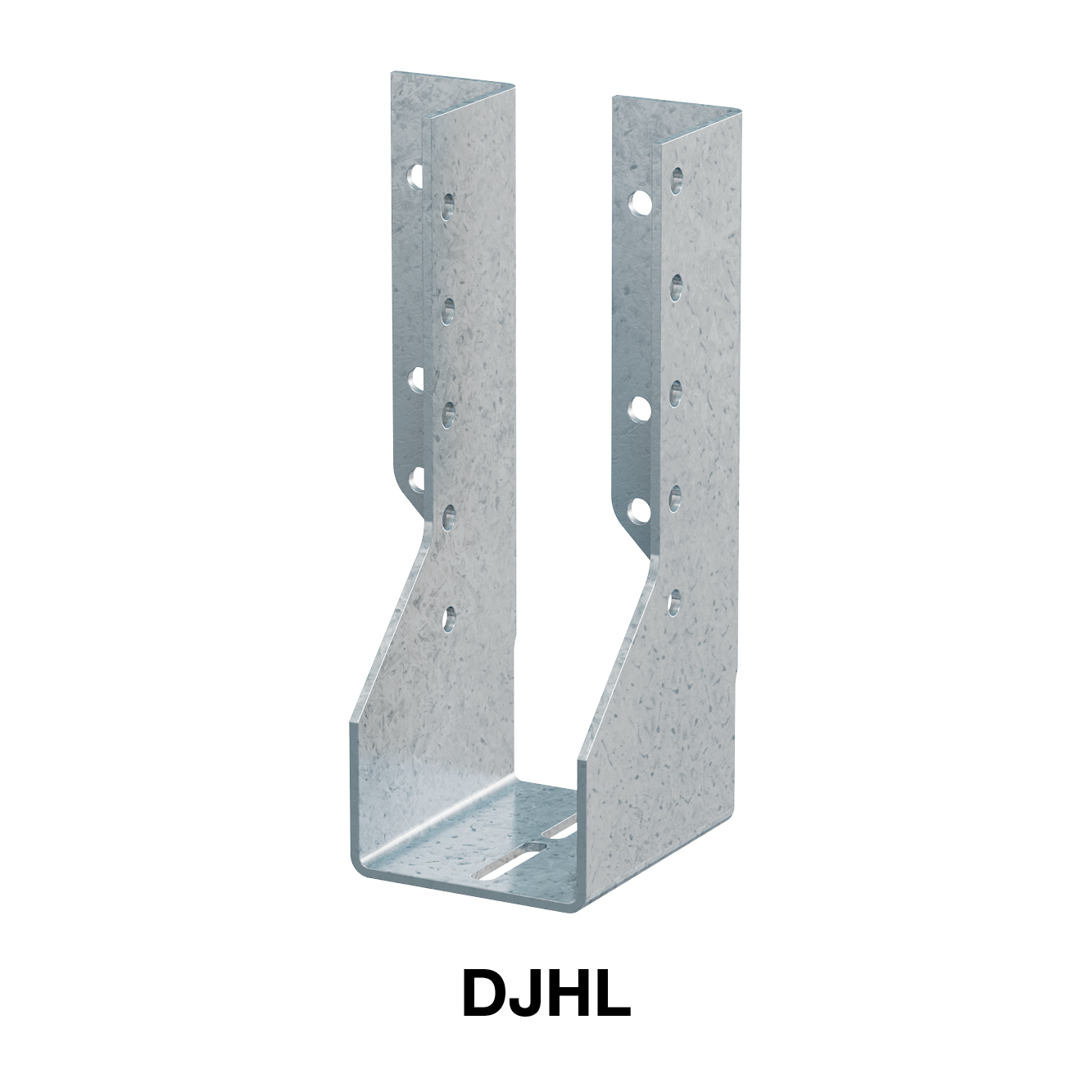

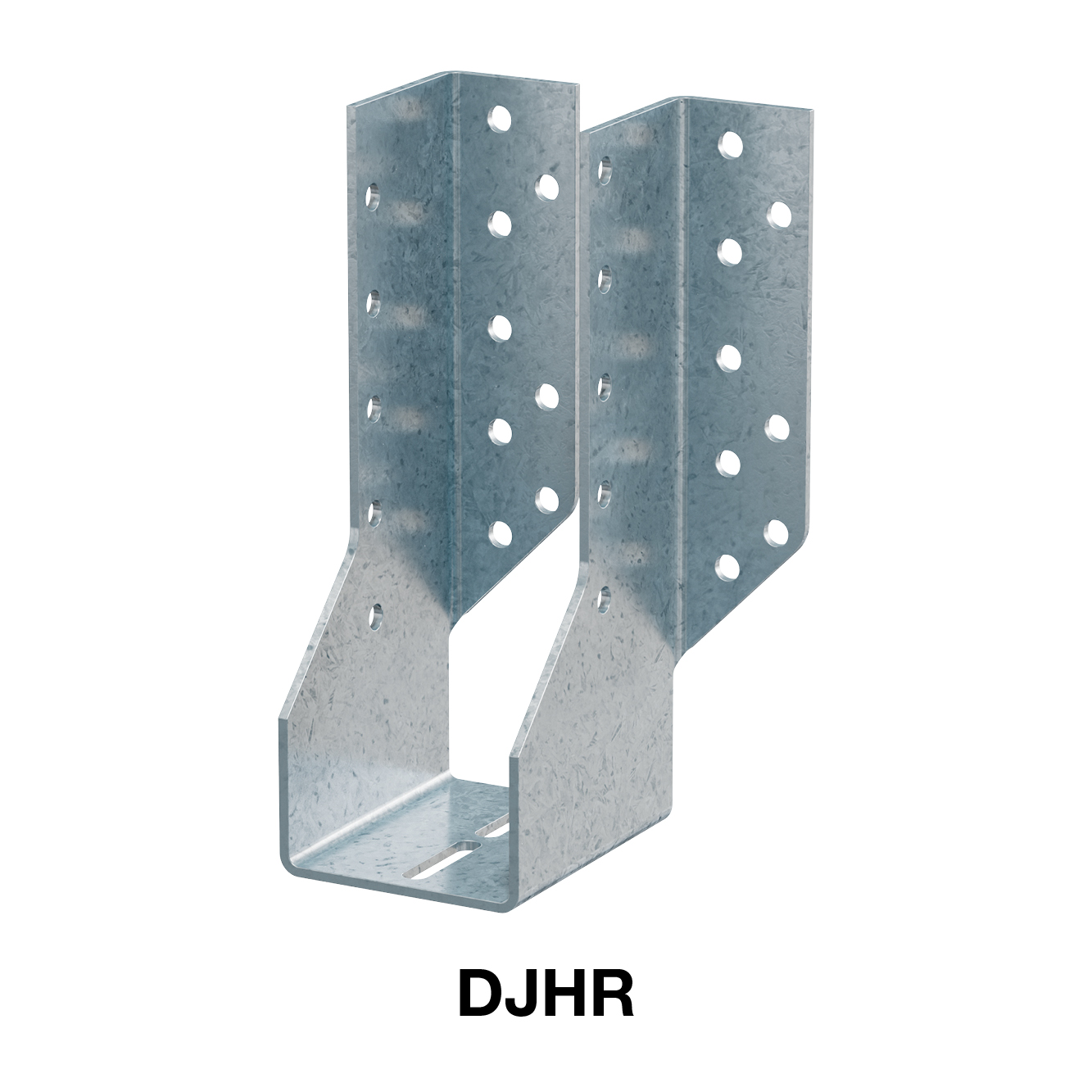

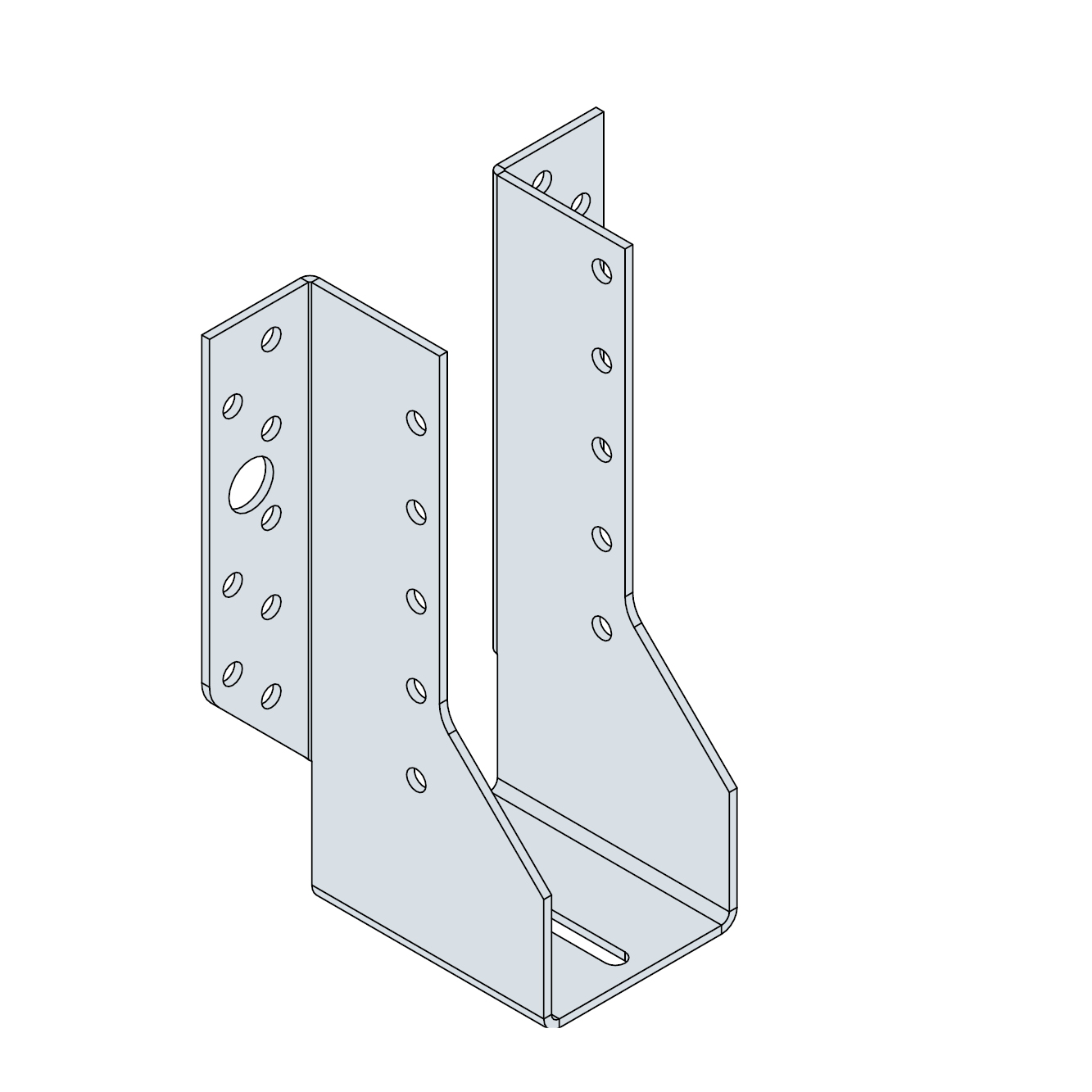

DJHR/L is a joist hanger used for timber to timber connections in outdoor structures. This joist hanger is divisible before installation to be adapted to supported joist width between 45 and 160 mm.

Developed for timber decking substructures, the DJH-Z joist hangers with ZPRO coating offer durability and flexibility to your outdoor installations.

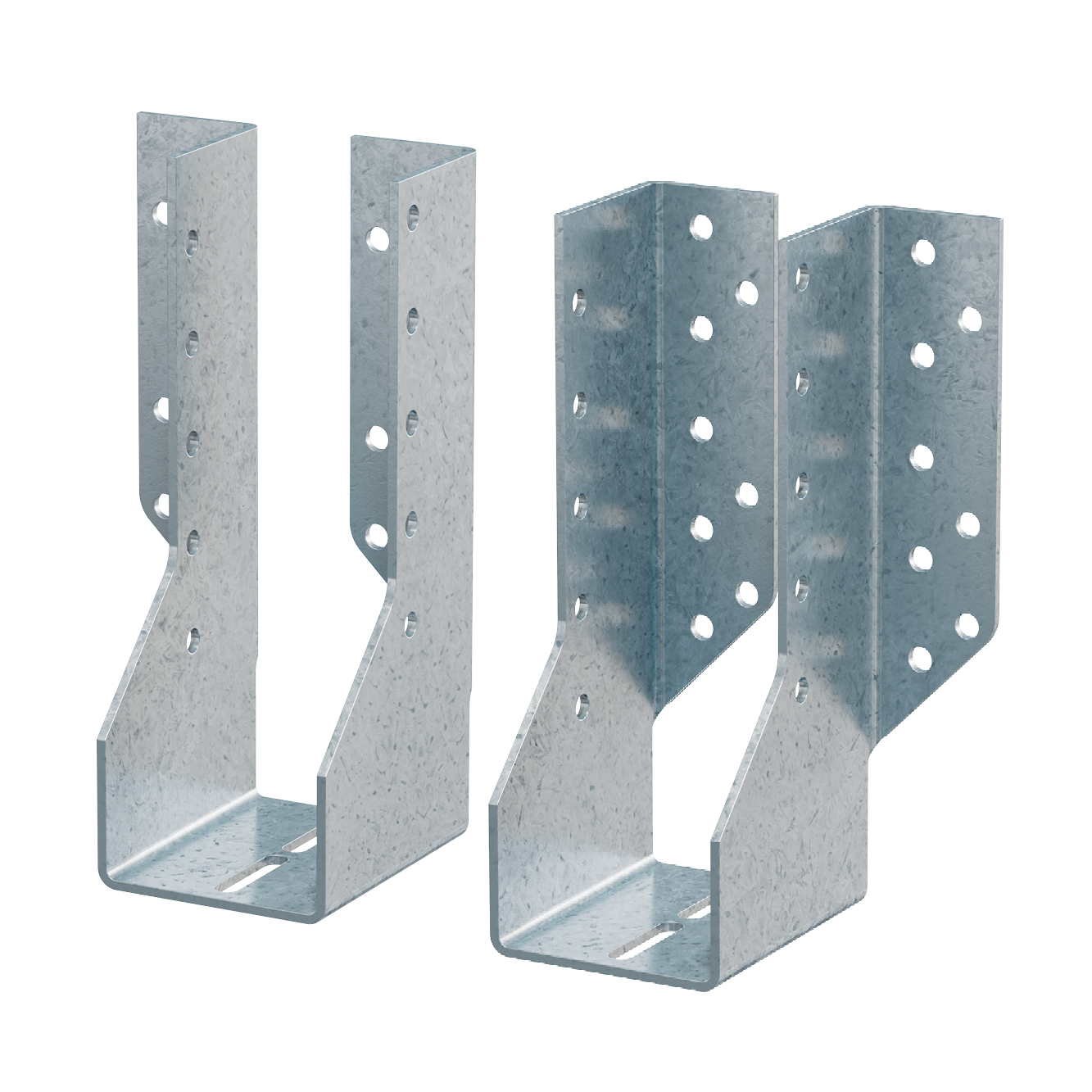

The hangers are designed in variants with either left- and right sided flange orientation and can be combined with the standard DJH-Z joist hanger with normal external flange orientation. This allows for installation of the outermost end-joists in a timber decking substructure creating a smooth and flush finish to the structure in a very simple way.

The DJH-Z are structural joist hangers suitable for outdoor wood-on-wood applications. The surface is protected by ZPRO coating, which improves its corrosion resistance compared to standard galvanised steel.

Ficha de Dados Técnicos

Novidade

Classe de serviço 3

Exterior

Zpro

Detalhes do produto

Imagens

Características

Material

Steel quality:

S250GD + ZPRO

Corrosion protection:

ZPRO coating - corresponding to a zinc layer of approx. 55 μm

Features

ZPRO coating protects the steel in outdoor applications.
Revised screw holes for easy DIY friendly installation.

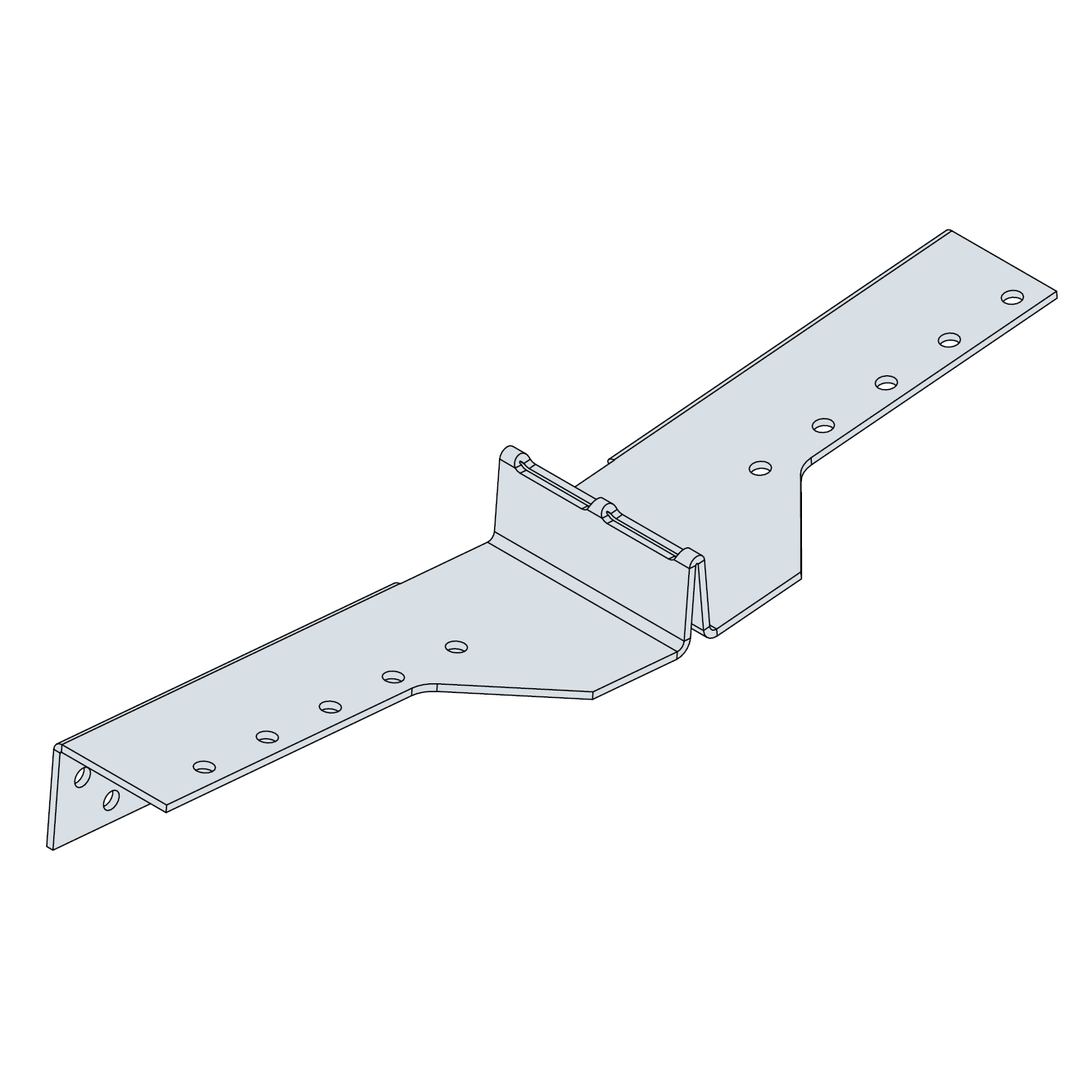

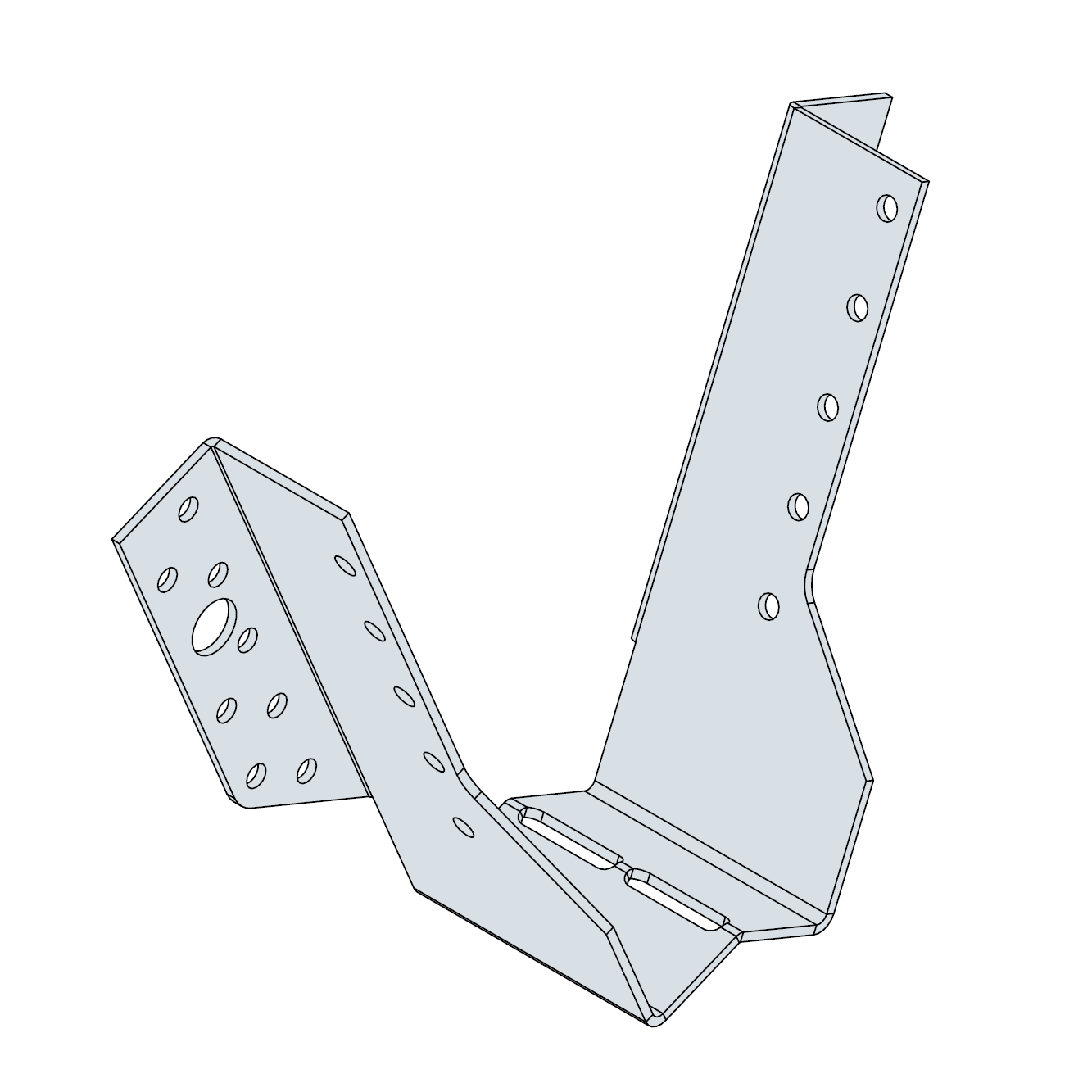

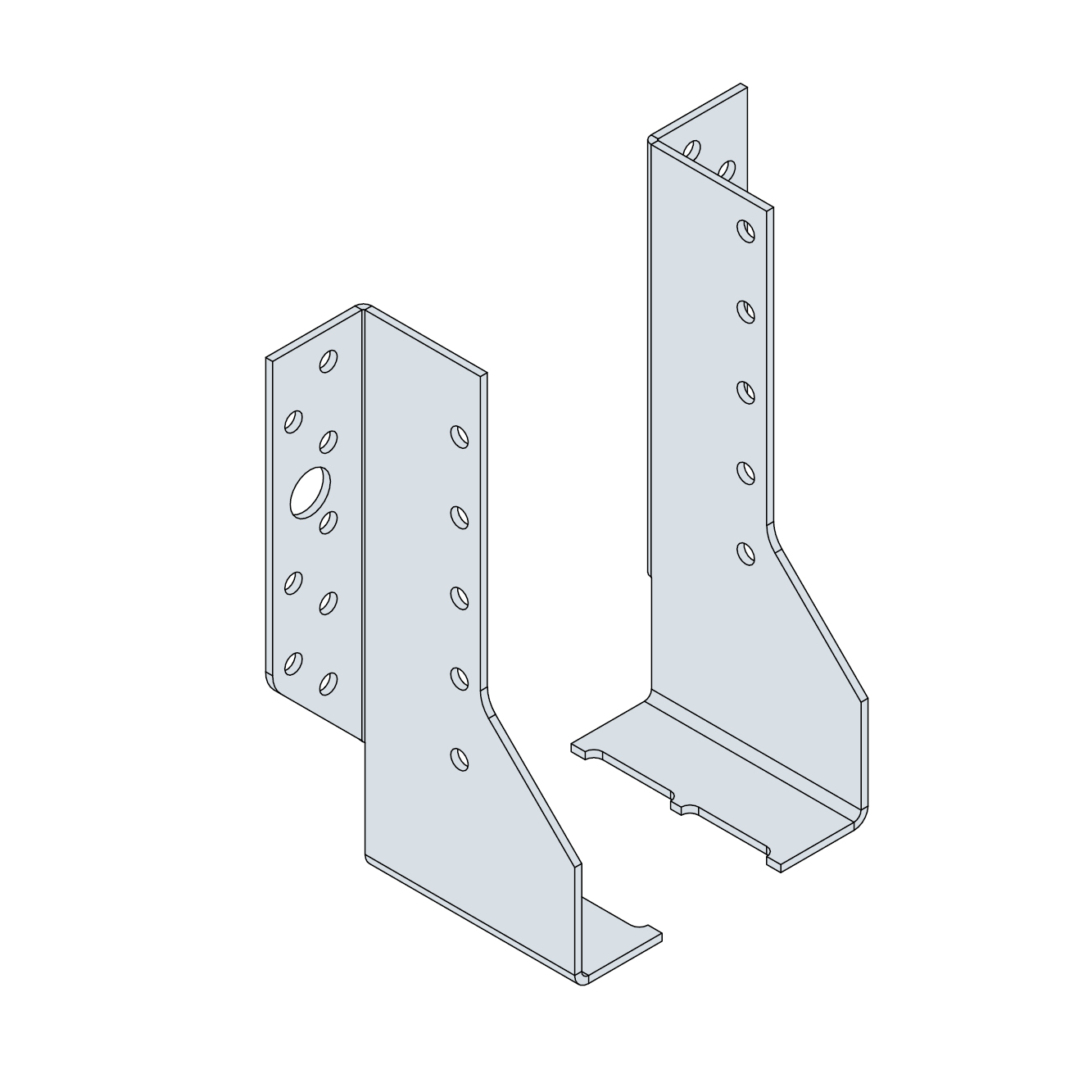

Elongated slots split for use with multiple wider joists.
Flange direction allows for internal / external configuration for end joist installation.

Benefits

Can be split before installation to adapt to timber widths between 45 and 160 mm.
Suitable for outdoor use: terraces, outdoor structures, etc.
Multiple configurations.

Aplicação

Suitable On

Supporting member :

Solid wood, engineered wood...

Supported member :

Solid wood, engineered wood...

Dados técnicos

Product Dimensions

Dimensões

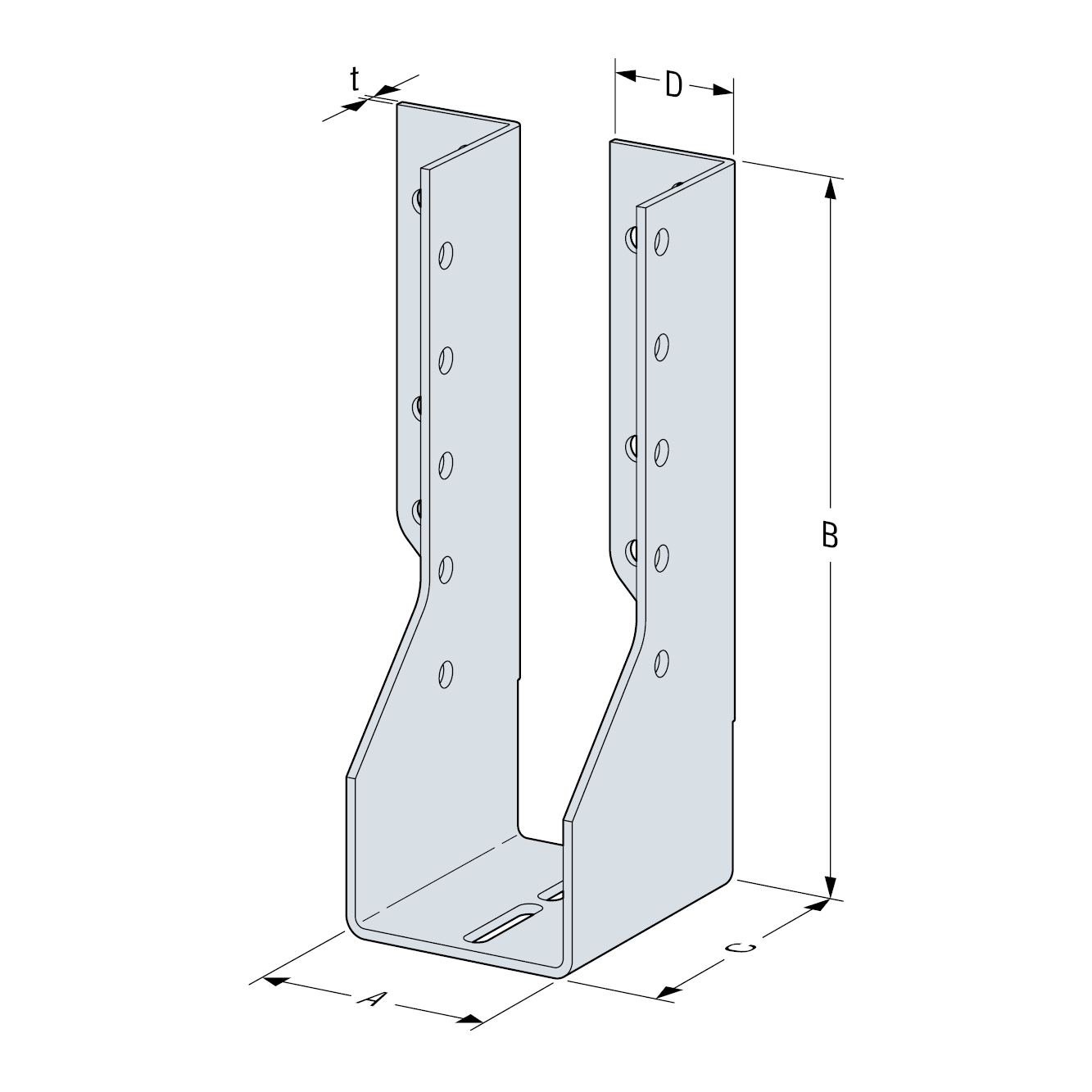

Referência	Dimensões do conector
	Dimensões e valores caraterísticos[mm]					Secções de madeira[mm]				Furos portador	Furos suportado
	A[mm]	B[mm]	C[mm]	D[mm]	t[mm]	Largura		Altura		Redondo	Redondo
	A[mm]	B[mm]	C[mm]	D[mm]	t[mm]	min[mm]	max[mm]	min[mm]	max[mm]	Ø5	Ø5
DJHL137/46Z	46	137	60	28	2	45	160	147	205	16	10
DJHR137/46Z	46	137	60	28	2	45	160	147	205	16	10
DJHL167/46Z	46	167	60	28	2	45	160	177	250	18	12
DJHR167/46Z	46	167	60	28	2	45	160	177	250	18	12

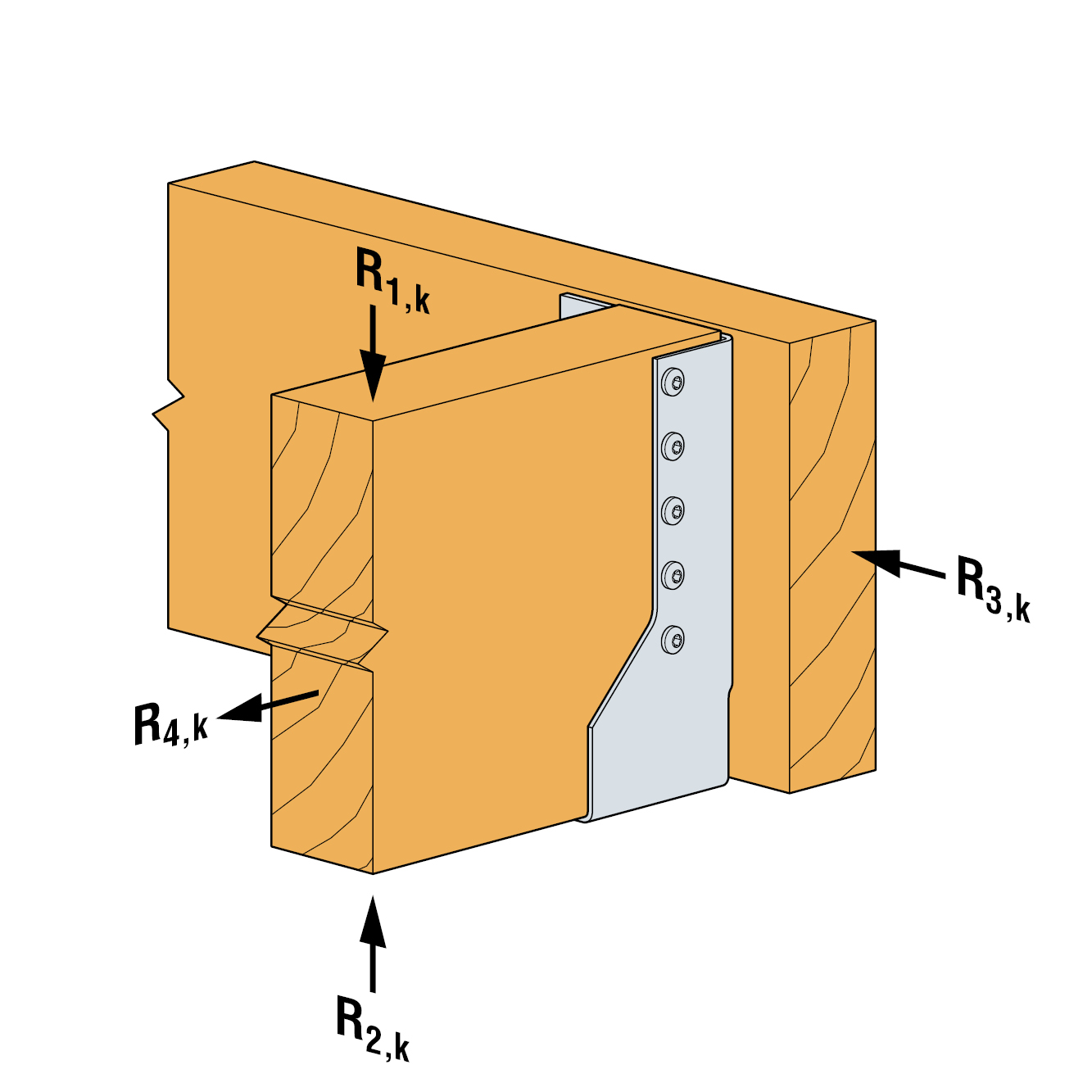

Product characteristic capacities - Timber to Timber - Full Nailling

Dimensões

Referência	Decking capacity
	Valores Característicos - Madeira sobre madeira - Pregagem total[kN]
	Fixacões		Valores característicos - Madeira classe C24[kN]
	Suportado	Portador	R₁,ₖ	R₂,ₖ
	Quantidade	Quantidade	CSA5.0x35Z	CSA5.0x35Z
DJHL137/46Z	10.0	16.0	13.4	9.1
DJHR137/46Z	10.0	16.0	13.4	9.1
DJHL167/46Z	12.0	18.0	18.2	9.1
DJHR167/46Z	12.0	18.0	18.2	9.1
