FIRKG

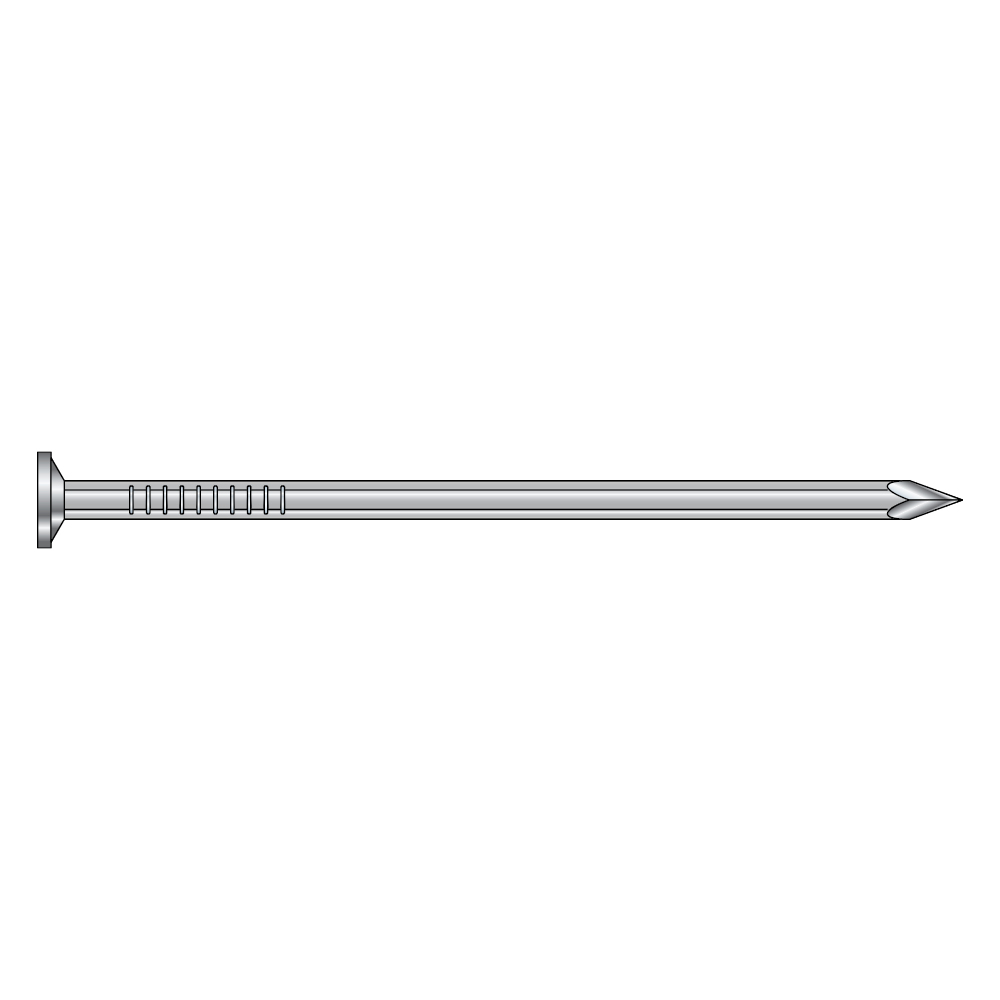

Prego canelado galvanizado a quente de cabeça plana

O prego canelado FIRKG de cabeça plana é utilizado, principalmente, em carpintaria.

Ficha de Dados Técnicos

Marcação CE

Classe de serviço 3

Aço galvanizado

Exterior

EPD

Solid Wood

Detalhes do produto

Imagens

Características

Matéria

Aço galvanizado a quente 50 µm (ISO 1461).

Vantagens

Forma canelada : fende menos a madeira do que um prego redondo ou quadrado,
Muito boa resistência ao arrancamento e ao cisalhamento (25% superior à de um prego redondo ou quadrado).

Aplicação

Suporte

Madeira maciça, aglomerado de madeira, madeira laminada colada, ...

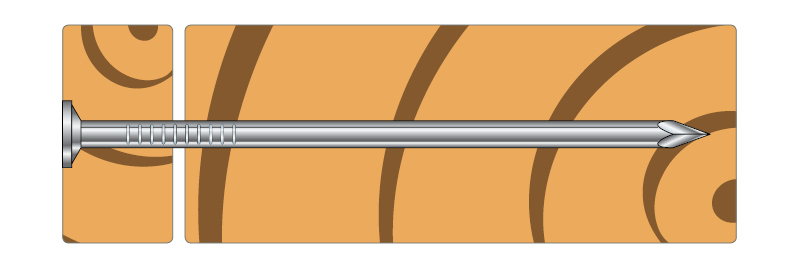

Áreas de utilização

Fixação para carpintaria,
Montagens em madeira.

Dados técnicos

Dimensões

Dimensões

Referência	Código artigo	Dimensões de fixacões [mm]					Qty/box	Qty/Blister	Peso [kg]
Referência	Código artigo	d	l	d_h	A_h	h_t	Qty/box	Qty/Blister	Peso [kg]
FIRKG1.4X25*	77269	1.4	25	3.5	-	-	2000	-	0.001
FIRKG1.7X30*	77270	1.7	30	4.2	-	-	1000	-	0.001
FIRKG1.7X35*	77273		35	4.2	-	-	1000	-	0.001
FIRKG1.7X40*	77274		40	4.2	-	-	1000	-	0.001
FIRKG2.0X50	77275	2	50	5	-	-	500	-	0.002
FIRKG2.0X50-3280	75009	2	50	5	19.6	0.7	3280	-	0.002
FIRKG2.3X60-2090	75010	2.3	60	5.4	22.9	0.8	2090	-	0.002
FIRKG2.5X65	77276	2.5	65	6	-	-	250	-	0.004
FIRKG2.8X75	77277	2.8	75	6.4	-	-	250	-	0.005
FIRKG2.8X90	77278		90	6.4	-	-	250	-	0.006
FIRKG2.8X90-500	75587		90	6.4	-	-	500	-	2.6
FIRKG3.1X75-920	75011	3.1	75	7.3	41.9	1	920	-	0.005
FIRKG3.4X90-645	75012	3.4	90	7.8	47.8	1	645	-	0.008
FIRKG3.4X125	75802	3.4	125	7.8	-	-	250	-	0.011
FIRKG3.7X100-490	75013	3.8	100	9	63.6	1.1	490	-	0.011
FIRKG4.3X125-295	75015	4.3	125	10.2	81.7	1.2	295	-	0.017
FIRKG5.1X140-195	75016	5.1	140	12.2	116.9	1.5	195	-	0.026
FIRKG5.1X150-180	75017		150	12.2	116.9	1.5	180	-	0.028
FIRKG5.1X160-170	75018		160	12.2	116.9	1.5	170	-	0.006
FIRKG5.5X180-130	75019	5.5	180	13.2	136.8	1.7	130	-	0.038
FIRKG5.5X210-110	75021	5.5	210	13.2	136.8	1.7	110	-	0.045
FIRKG6.0X200	77281	6	200	14.5	-	-	60	-	0.051
FIRKG6.0X200-100	75020	6	200	14.5	165.1	1.7	100	-	0.05
FIRKG7.0X225-65	75022	7	225	17	227	1.7	65	-	0.077
FIRKG7.0X250-60	75023		250	17	227	1.7	60	-	0.083
FIRKG7.0X275-55	75024		275	17	227	1.7	55	-	0.091
FIRKG8.0X300-35	75025	8	300	19.5	298.6	2	35	-	0.14
FIRKG8.0X330-30	75026	8	300	19.5	298.6	2	35	-	0.14

* not covered by CE marking

Propriedades característicos de produto

Referência	Propriedades característicos de produto
Referência	Momento do escoamento plástico característico – M_y,k [M_y.k] [Nmm]	Parâmetro de resistência característica ao arrancamento - f_ax,k,90° [f_ax.k.90°] [N/mm²]	Parâmetro de resistência característica à transversalidade da cabeça - f_head,k [f_head.k] [N/mm²]	Capacidade de resistência característica em tração - f_tens,k [f_tens.k] [kN]
FIRKG1.4X25*	-	-	-	-
FIRKG1.7X30*	-	-	-	-
FIRKG1.7X35*	-	-	-	-
FIRKG1.7X40*	-	-	-	-
FIRKG2.0X50	-	-	-	-
FIRKG2.0X50-3280	1289	2.5	8.6	NPD
FIRKG2.3X60-2090	1721	2.5	8.6	NPD
FIRKG2.5X65	-	-	-	-
FIRKG2.8X75	-	-	-	-
FIRKG2.8X90	-	-	-	-
FIRKG2.8X90-500	-	-	-	-
FIRKG3.1X75-920	4902	2.5	8.6	NPD
FIRKG3.4X90-645	6989	2.5	8.6	NPD
FIRKG3.4X125	-	-	-	-
FIRKG3.7X100-490	11163	2.5	8.6	NPD
FIRKG4.3X125-295	11514	2.5	8.6	NPD
FIRKG5.1X140-195	19890	2.5	8.6	NPD
FIRKG5.1X150-180	19890	2.5	8.6	NPD
FIRKG5.1X160-170	19890	2.5	8.6	NPD
FIRKG5.5X180-130	24876	2.5	8.6	NPD
FIRKG5.5X210-110	24876	2.5	8.6	NPD
FIRKG6.0X200	-	-	-	-
FIRKG6.0X200-100	32070	2.5	8.6	NPD
FIRKG7.0X225-65	43697	2.5	8.6	NPD
FIRKG7.0X250-60	43697	2.5	8.6	NPD
FIRKG7.0X275-55	43697	2.5	8.6	NPD
FIRKG8.0X300-35	67041	2.5	8.6	NPD
FIRKG8.0X330-30	67041	2.5	8.6	NPD

Consulte ETA para mais detalhes.

NPD: Nenhum desempenho declarado ("No performance declared")
