GBE

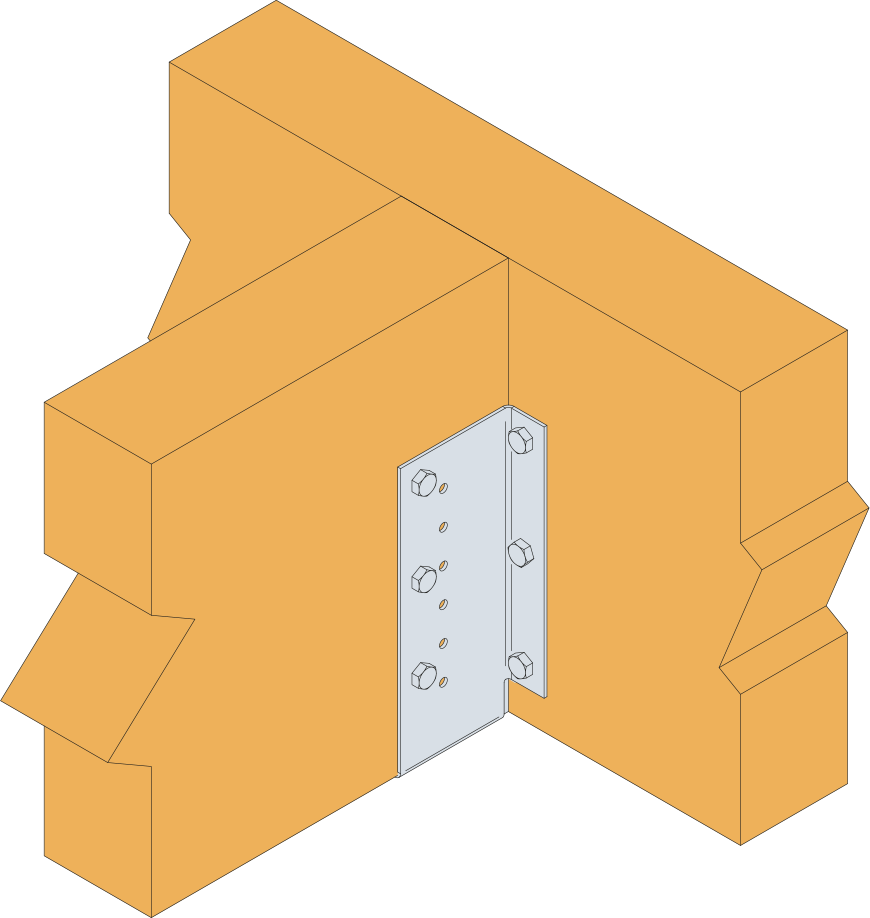

Suporte grande com abas exteriores para laminada colada

Os grandes suportes GBE foram especialmente desenvolvidos para a laminada colada. Podem ser instalados sobre um elemento de madeira ou de betão, exclusivamente com parafusos. São fabricados principalmente para vigas suportadas de grandes dimensões.

Ficha de Dados Técnicos

Marcação CE

ATE

Classe de serviço 2

Aço eletrogalvanizado 20µm

Detalhes do produto

Imagens

Características

Matéria

Aço galvanizado S250GD + Z275 em conformidade com a norma NF EN 10346,
Espessura : 4 mm.

Ventagens

Instalação rápida e simples com fixação exclusivamente por parafusos,
Vasto leque de dimensões.

Aplicação

Suporte

Elemento de suporte : madeira maciça, laminada colada, betão,
Elemento suportado : madeira maciça, laminada colada.

Áreas de utilização

Vigas de madeira maciça,
Vigas de laminada colada, …

Dados técnicos

Dimensões

Desdobrados e larguras

Referência	Dimensões e valores caraterísticos [mm]			Furos suportado		Furos portador
Referência	Blank model	A	t	Ø11	Ø18	Ø18
GBE600/4X	600	75-225	4	6	4	4
GBE750/4X	750	75-225	4	8	4	4
GBE900/4X	900	75-225	4	12	6	6
GBE1050/4X	1050	75-225	4	14	6	6
GBE1200/4X	1200	75-225	4	18	8	8
GBE1350/4X	1350	75-225	4	20	8	8
GBE1500/4X	1500	75-225	4	24	10	10

The articles ending with an X are blanks from wihich the products above are made of and are not products.

Dimensões e valores caraterísticos

Referência	Portador [mm]				Dimensões e valores caraterísticos [mm]
	Larguras		Altura		A	B	C	D	F	t	Furos portador	Furos suportado
	Larguras	Máx.	Larguras	Máx.	A	B	C	D	F	t	Ø18	Ø11	Ø18
GBE600/90/4	88	90	291	382	90	255	145	54	155	4	4	6	4
GBE750/90/4	88	90	366	495		330	145	54	155	4	4	8	4
GBE900/90/4	88	90	441	607		405	145	54	155	4	6	12	6
GBE1050/90/4	88	90	516	720		480	145	54	155	4	6	14	6
GBE1200/90/4	88	90	591	832		555	145	54	155	4	8	18	8
GBE600/100/4	98	100	286	375	100	250	145	54	155	4	4	6	4
GBE750/100/4	98	100	361	487		325	145	54	155	4	4	8	4
GBE900/100/4	98	100	436	600		400	145	54	155	4	6	12	6
GBE1050/100/4	98	100	511	712		475	145	54	155	4	6	14	6
GBE1200/100/4	98	100	586	825		550	145	54	155	4	8	18	8
GBE600/104/4	102	104	284	372	104	248	145	54	155	4	4	6	4
GBE750/104/4	102	104	359	484		323	145	54	155	4	4	8	4
GBE900/104/4	102	104	434	597		398	145	54	155	4	6	12	6
GBE1050/104/4	102	104	509	709		473	145	54	155	4	6	14	6
GBE1200/104/4	102	104	584	822		548	145	54	155	4	8	18	8
GBE600/114/4	112	114	279	364	114	243	145	54	155	4	4	6	4
GBE750/114/4	112	114	354	477		318	145	54	155	4	4	8	4
GBE900/114/4	112	114	429	589		393	145	54	155	4	6	12	6
GBE1050/114/4	112	114	504	702		468	145	54	155	4	6	14	6
GBE1200/114/4	112	114	579	814		543	145	54	155	4	8	18	8
GBE600/120/4	118	120	276	360	120	240	145	54	155	4	4	6	4
GBE750/120/4	118	120	351	472		315	145	54	155	4	4	8	4
GBE900/120/4	118	120	426	585		390	145	54	155	4	6	12	6
GBE1050/120/4	118	120	501	697		465	145	54	155	4	6	14	6
GBE1200/120/4	118	120	576	810		540	145	54	155	4	8	18	8
GBE600/138/4	136	138	267	346	138	231	145	54	155	4	4	6	4
GBE750/138/4	136	138	342	459		306	145	54	155	4	4	8	4
GBE900/138/4	136	138	417	571		381	145	54	155	4	6	12	6
GBE1050/138/4	136	138	492	684		456	145	54	155	4	6	14	6
GBE1200/138/4	136	138	567	796		531	145	54	155	4	8	18	8
GBE1350/138/4	136	138	642	909		606	145	54	155	4	8	20	8
GBE1500/138/4	136	138	717	1021		681	145	54	155	4	10	24	10
GBE600/140/4	138	140	266	345	140	230	145	54	155	4	4	6	4
GBE750/140/4	138	140	341	457		305	145	54	155	4	4	8	4
GBE900/140/4	138	140	416	570		380	145	54	155	4	6	12	6
GBE1050/140/4	138	140	491	682		455	145	54	155	4	6	14	6
GBE1200/140/4	138	140	566	795		530	145	54	155	4	8	18	8
GBE1350/140/4	138	140	641	907		605	145	54	155	4	8	20	8
GBE1500/140/4	-	-	-	-		680	145	54	155	4	10	24	10
GBE600/160/4	158	160	256	330	160	220	145	54	155	4	4	6	4
GBE750/160/4	158	160	331	442		295	145	54	155	4	4	8	4
GBE900/160/4	158	160	406	555		370	145	54	155	4	6	12	6
GBE1050/160/4	158	160	481	667		445	145	54	155	4	6	14	6
GBE1200/160/4	158	160	556	780		520	145	54	155	4	8	18	8
GBE1350/160/4	158	160	631	892		595	145	54	155	4	8	20	8
GBE1500/160/4	158	160	706	1005		670	145	54	155	4	10	24	10
GBE600/162/4	160	162	255	328	162	219	145	54	155	4	4	6	4
GBE750/162/4	160	162	330	441		294	145	54	155	4	4	8	4
GBE900/162/4	160	162	405	553		369	145	54	155	4	6	12	6
GBE1050/162/4	160	162	480	666		444	145	54	155	4	6	14	6
GBE1200/162/4	160	162	555	778		519	145	54	155	4	8	18	8
GBE1350/162/4	160	162	630	891		594	145	54	155	4	8	20	8
GBE1500/162/4	160	162	705	1003		669	145	54	155	4	10	24	10
GBE600/180/4	178	180	246	315	180	210	145	54	155	4	4	6	4
GBE750/180/4	178	180	321	427		285	145	54	155	4	4	8	4
GBE900/180/4	178	180	396	540		360	145	54	155	4	6	12	6
GBE1050/180/4	178	180	471	652		435	145	54	155	4	6	14	6
GBE1200/180/4	178	180	546	765		510	145	54	155	4	8	18	8
GBE1350/180/4	178	180	621	877		585	145	54	155	4	8	20	8
GBE1500/180/4	178	180	696	990		660	145	54	155	4	10	24	10
GBE600/186/4	184	186	243	310	186	207	145	54	155	4	4	6	4
GBE750/186/4	184	186	318	423		282	145	54	155	4	4	8	4
GBE900/186/4	184	186	393	535		357	145	54	155	4	6	12	6
GBE1050/186/4	184	186	468	648		432	145	54	155	4	6	14	6
GBE1200/186/4	184	186	543	760		507	145	54	155	4	8	18	8
GBE1350/186/4	184	186	618	873		582	145	54	155	4	8	20	8
GBE1500/186/4	184	186	693	985		657	145	54	155	4	10	24	10
GBE600/200/4	198	200	236	300	200	200	145	54	155	4	4	6	4
GBE750/200/4	198	200	311	412		275	145	54	155	4	4	8	4
GBE900/200/4	198	200	386	525		350	145	54	155	4	6	12	6
GBE1050/200/4	198	200	461	637		425	145	54	155	4	6	14	6
GBE1200/200/4	198	200	536	750		500	145	54	155	4	8	18	8
GBE1350/200/4	198	200	611	862		575	145	54	155	4	8	20	8
GBE1500/200/4	198	200	686	975		650	145	54	155	4	10	24	10
GBE600/210/4	208	210	231	292	210	195	145	54	155	4	4	6	4
GBE750/210/4	208	210	306	405		270	145	54	155	4	4	8	4
GBE900/210/4	208	210	381	517		345	145	54	155	4	6	12	6
GBE1050/210/4	208	210	456	630		420	145	54	155	4	6	14	6
GBE1200/210/4	208	210	531	742		495	145	54	155	4	8	18	8
GBE1350/210/4	208	210	606	855		570	145	54	155	4	8	20	8
GBE1500/210/4	208	210	681	967		645	145	54	155	4	10	24	10
GBE600/220/4	218	220	226	285	220	190	145	54	155	4	4	6	4
GBE750/220/4	218	220	301	397		265	145	54	155	4	4	8	4
GBE900/220/4	218	220	376	510		340	145	54	155	4	6	12	6
GBE1050/220/4	218	220	451	622		415	145	54	155	4	6	14	6
GBE1200/220/4	218	220	526	735		490	145	54	155	4	8	18	8
GBE1350/220/4	-	-	-	-		565	145	54	155	4	8	20	8
GBE1500/220/4	218	220	676	960		640	145	54	155	4	10	24	10

Valores caraterísticos em suportes laminada colada GL24

Referência	Characteristic capacities - Timber to timber			Characteristic capacity - Timber GL24 [kN]
	A	Fixacões		R_1.k		R_2.k		R_3.k		R_4.k
		Portador	Suportado	Parafuso Ø16 - Class 4.6	Parafuso Ø16 - Class 5.8	Parafuso Ø16 - Class 4.6	Parafuso Ø16 - Class 5.8	Parafuso Ø16 - Class 4.6	Parafuso Ø16 - Class 5.8	Parafuso Ø16 - Class 4.6	Parafuso Ø16 - Class 5.8
		Qdad	Qdad	Parafuso Ø16 - Class 4.6	Parafuso Ø16 - Class 5.8	Parafuso Ø16 - Class 4.6	Parafuso Ø16 - Class 5.8	Parafuso Ø16 - Class 4.6	Parafuso Ø16 - Class 5.8	Parafuso Ø16 - Class 4.6	Parafuso Ø16 - Class 5.8
GBE600/90/4	90	4	2	34.5	34.5	19.3	20.1	12.9	12.9	25.6	25.6
GBE750/90/4		4	2	38.2	41.7	29.4	29.4	12.9	12.9	36.3	36.3
GBE900/90/4		6	3	69.6	75	43.5	43.5	12.9	12.9	47	47
GBE1050/90/4		6	3	69.6	76	49.8	49.8	12.9	12.9	57.7	57.7
GBE1200/90/4		8	4	98.8	98.8	67.3	67.3	12.9	12.9	68.4	68.4
GBE600/100/4	100	4	2	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/100/4		4	2	38.2	41.7	30.8	32.6	12.9	12.9	36.3	36.3
GBE900/100/4		6	3	69.6	76	45.4	48.3	12.9	12.9	47	47
GBE1050/100/4		6	3	69.6	76	53.7	55.3	12.9	12.9	57.7	57.7
GBE1200/100/4		8	4	103.7	106.3	72.8	74.8	12.9	12.9	68.4	68.4
GBE600/104/4	104	4	2	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/104/4		4	2	38.2	41.7	30.8	33.6	12.9	12.9	36.3	36.3
GBE900/104/4		6	3	69.6	76	45.4	49.6	12.9	12.9	47	47
GBE1050/104/4		6	3	69.6	76	53.7	57.5	12.9	12.9	57.7	57.7
GBE1200/104/4		8	4	103.7	109.3	72.8	77.8	12.9	12.9	68.4	68.4
GBE600/114/4	114	4	2	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/114/4		4	2	38.2	41.7	30.8	33.6	12.9	12.9	36.3	36.3
GBE900/114/4		6	3	69.6	76	45.4	49.6	12.9	12.9	47	47
GBE1050/114/4		6	3	69.6	76	53.7	58.6	12.9	12.9	57.7	57.7
GBE1200/114/4		8	4	103.7	111	72.8	79.5	12.9	12.9	68.4	68.4
GBE600/120/4	120	4	2	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/120/4		4	2	38.2	41.7	30.8	33.6	12.9	12.9	36.3	36.3
GBE900/120/4		6	3	69.6	76	45.4	49.6	12.9	12.9	47	47
GBE1050/120/4		6	3	69.6	76	53.7	58.6	12.9	12.9	57.7	57.7
GBE1200/120/4		8	4	103.7	111	72.8	79.5	12.9	12.9	68.4	68.4
GBE600/138/4	138	4	2	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/138/4		4	2	38.2	41.7	30.8	33.6	12.9	12.9	36.3	36.3
GBE900/138/4		6	3	69.6	76	45.4	49.6	12.9	12.9	47	47
GBE1050/138/4		6	3	69.6	76	53.7	58.6	12.9	12.9	57.7	57.7
GBE1200/138/4		8	4	103.7	111	72.8	79.5	12.9	12.9	68.4	68.4
GBE1350/138/4		8	4	103.7	113.2	79.4	86.8	12.9	12.9	79.1	79.1
GBE1500/138/4		10	5	129.6	141.5	101.1	110.5	12.9	12.9	89.9	89.9
GBE600/140/4	140	4	2	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/140/4		4	2	38.2	41.7	30.8	33.6	12.9	12.9	36.3	36.3
GBE900/140/4		6	3	69.6	76	45.4	49.6	12.9	12.9	47	47
GBE1050/140/4		6	3	69.6	76	53.7	58.6	12.9	12.9	57.7	57.7
GBE1200/140/4		8	4	103.7	111	72.8	79.5	12.9	12.9	68.4	68.4
GBE1350/140/4		8	4	103.7	113.2	79.4	86.8	12.9	12.9	79.1	79.1
GBE1500/140/4		10	5	129.6	141.5	101.1	110.5	12.9	12.9	89.9	89.9
GBE600/160/4	160	4	2	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/160/4		4	2	38.2	41.7	30.8	33.6	12.9	12.9	36.3	36.3
GBE900/160/4		6	3	69.6	76	45.4	49.6	12.9	12.9	47	47
GBE1050/160/4		6	3	69.6	76	53.7	58.6	12.9	12.9	57.7	57.7
GBE1200/160/4		8	4	103.7	111	72.8	79.5	12.9	12.9	68.4	68.4
GBE1350/160/4		8	4	103.7	113.2	79.4	86.8	12.9	12.9	79.1	79.1
GBE1500/160/4		10	5	129.6	141.5	101.1	110.5	12.9	12.9	89.9	89.9
GBE600/162/4	162	4	2	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/162/4		4	2	38.2	41.7	30.8	33.6	12.9	12.9	36.3	36.3
GBE900/162/4		6	3	69.6	76	45.4	49.6	12.9	12.9	47	47
GBE1050/162/4		6	3	69.6	76	53.7	58.6	12.9	12.9	57.7	57.7
GBE1200/162/4		8	4	103.7	111	72.8	79.5	12.9	12.9	68.4	68.4
GBE1350/162/4		8	4	103.7	113.2	79.4	86.8	12.9	12.9	79.1	79.1
GBE1500/162/4		10	5	129.6	141.5	101.1	110.5	12.9	12.9	89.9	89.9
GBE600/180/4	180	4	2	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/180/4		4	2	38.2	41.7	30.8	33.6	12.9	12.9	36.3	36.3
GBE900/180/4		6	3	69.6	76	45.4	49.6	12.9	12.9	47	47
GBE1050/180/4		6	3	69.6	76	53.7	58.6	12.9	12.9	57.7	57.7
GBE1200/180/4		8	4	103.7	111	72.8	79.5	12.9	12.9	68.4	68.4
GBE1350/180/4		8	4	103.7	113.2	79.4	86.8	12.9	12.9	79.1	79.1
GBE1500/180/4		10	5	129.6	141.5	101.1	110.5	12.9	12.9	89.9	89.9
GBE600/186/4	186	4	2	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/186/4		4	2	38.2	41.7	30.8	33.6	12.9	12.9	36.3	36.3
GBE900/186/4		6	3	69.6	76	45.4	49.6	12.9	12.9	47	47
GBE1050/186/4		6	3	69.6	76	53.7	58.6	12.9	12.9	57.7	57.7
GBE1200/186/4		8	4	103.7	111	72.8	79.5	12.9	12.9	68.4	68.4
GBE1350/186/4		8	4	103.7	113.2	79.4	86.8	12.9	12.9	79.1	79.1
GBE1500/186/4		10	5	129.6	141.5	101.1	110.5	12.9	12.9	89.9	89.9
GBE600/200/4	200	4	2	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/200/4		4	2	38.2	41.7	30.8	33.6	12.9	12.9	36.3	36.3
GBE900/200/4		6	3	69.6	76	45.4	49.6	12.9	12.9	47	47
GBE1050/200/4		6	3	69.6	76	53.7	58.6	12.9	12.9	57.7	57.7
GBE1200/200/4		8	4	103.7	111	72.8	79.5	12.9	12.9	68.4	68.4
GBE1350/200/4		8	4	103.7	113.2	79.4	86.8	12.9	12.9	79.1	79.1
GBE1500/200/4		10	5	129.6	141.5	101.1	110.5	12.9	12.9	89.9	89.9
GBE600/210/4	210	4	2	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/210/4		4	2	38.2	41.7	30.8	33.6	12.9	12.9	36.3	36.3
GBE900/210/4		6	3	69.6	76	45.4	49.6	12.9	12.9	47	47
GBE1050/210/4		6	3	69.6	76	53.7	58.6	12.9	12.9	57.7	57.7
GBE1200/210/4		8	4	103.7	111	72.8	79.5	12.9	12.9	68.4	68.4
GBE1350/210/4		8	4	103.7	113.2	79.4	86.8	12.9	12.9	79.1	79.1
GBE1500/210/4		10	5	129.6	141.5	101.1	110.5	12.9	12.9	89.9	89.9
GBE600/220/4	220	4	2	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/220/4		4	2	38.2	41.7	30.8	33.6	12.9	12.9	36.3	36.3
GBE900/220/4		6	3	69.6	76	45.4	49.6	12.9	12.9	47	47
GBE1050/220/4		6	3	69.6	76	53.7	58.6	12.9	12.9	57.7	57.7
GBE1200/220/4		8	4	103.7	111	72.8	79.5	12.9	12.9	68.4	68.4
GBE1350/220/4		8	4	103.7	113.2	79.4	86.8	12.9	12.9	79.1	79.1
GBE1500/220/4		10	5	129.6	141.5	101.1	110.5	12.9	12.9	89.9	89.9

As dimensões apresentadas na tabela acima são, meramente, exemplos. É possível fabricar e justificar outras dimensões a nível das cargas.

Os valores caraterísticos publicados correspondem a madeira da classe GL24.
Os parafusos utilizados são os de Ø 16 mm da classe 4.6 e 5.8.
O suporte considerado tem uma espessura de 210 mm.

Valores caraterísticos em elemento de betão

Referência	A	Valores característicos - Madeira sobre betão ou aço				Characteristic capacity - Timber GL24 [kN]
		Fixacões				R_1.k		R_2.k		R_3.k		R_4.k
		Portador		Suportado		Parafuso Ø16 - Class 4.6	Parafuso Ø16 - Class 5.8	Parafuso Ø16 - Class 4.6	Parafuso Ø16 - Class 5.8	Parafuso Ø16 - Class 4.6	Parafuso Ø16 - Class 5.8	Parafuso Ø16 - Class 4.6	Parafuso Ø16 - Class 5.8
		Qdad	Tipo	Qdad	Tipo	Parafuso Ø16 - Class 4.6	Parafuso Ø16 - Class 5.8	Parafuso Ø16 - Class 4.6	Parafuso Ø16 - Class 5.8	Parafuso Ø16 - Class 4.6	Parafuso Ø16 - Class 5.8	Parafuso Ø16 - Class 4.6	Parafuso Ø16 - Class 5.8
GBE600/90/4	90	4	Ø16*	2	Ø16**	34.5	34.5	19.3	20.1	12.9	12.9	25.6	25.6
GBE750/90/4		4	Ø16*	2	Ø16**	58	58	29.4	29.4	12.9	12.9	36.3	36.3
GBE900/90/4		6	Ø16*	3	Ø16**	75	75	43.5	43.5	12.9	12.9	47	47
GBE1050/90/4		6	Ø16*	3	Ø16**	81.3	81.3	49.8	49.8	12.9	12.9	57.7	57.7
GBE1200/90/4		8	Ø16*	4	Ø16**	98.8	98.8	67.3	67.3	12.9	12.9	68.4	68.4
GBE600/100/4	100	4	Ø16*	2	Ø16**	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/100/4		4	Ø16*	2	Ø16**	58	58	30.8	32.6	12.9	12.9	36.3	36.3
GBE900/100/4		6	Ø16*	3	Ø16**	76.9	79.8	45.4	48.3	12.9	12.9	47	47
GBE1050/100/4		6	Ø16*	3	Ø16**	85.2	86.8	53.7	55.3	12.9	12.9	57.7	57.7
GBE1200/100/4		8	Ø16*	4	Ø16**	104.3	106.3	72.8	74.8	12.9	12.9	68.4	68.4
GBE600/104/4	104	4	Ø16*	2	Ø16**	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/104/4		4	Ø16*	2	Ø16**	58	58	30.8	33.6	12.9	12.9	36.3	36.3
GBE900/104/4		6	Ø16*	3	Ø16**	76.9	81.1	45.4	49.6	12.9	12.9	47	47
GBE1050/104/4		6	Ø16*	3	Ø16**	85.2	89	53.7	57.5	12.9	12.9	57.7	57.7
GBE1200/104/4		8	Ø16*	4	Ø16**	104.3	109.3	72.8	77.8	12.9	12.9	68.4	68.4
GBE600/114/4	114	4	Ø16*	2	Ø16**	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/114/4		4	Ø16*	2	Ø16**	58	58	30.8	33.6	12.9	12.9	36.3	36.3
GBE900/114/4		6	Ø16*	3	Ø16**	76.9	81.1	45.4	49.6	12.9	12.9	47	47
GBE1050/114/4		6	Ø16*	3	Ø16**	85.2	90.2	53.7	58.6	12.9	12.9	57.7	57.7
GBE1200/114/4		8	Ø16*	4	Ø16**	104.3	111	72.8	79.5	12.9	12.9	68.4	68.4
GBE600/120/4	120	4	Ø16*	2	Ø16**	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/120/4		4	Ø16*	2	Ø16**	58	58	30.8	33.6	12.9	12.9	36.3	36.3
GBE900/120/4		6	Ø16*	3	Ø16**	76.9	81.1	45.4	49.6	12.9	12.9	47	47
GBE1050/120/4		6	Ø16*	3	Ø16**	85.2	90.2	53.7	58.6	12.9	12.9	57.7	57.7
GBE1200/120/4		8	Ø16*	4	Ø16**	104.3	111	72.8	79.5	12.9	12.9	68.4	68.4
GBE600/138/4	138	4	Ø16*	2	Ø16**	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/138/4		4	Ø16*	2	Ø16**	58	58	30.8	33.6	12.9	12.9	36.3	36.3
GBE900/138/4		6	Ø16*	3	Ø16**	76.9	81.1	45.4	49.6	12.9	12.9	47	47
GBE1050/138/4		6	Ø16*	3	Ø16**	85.2	90.2	53.7	58.6	12.9	12.9	57.7	57.7
GBE1200/138/4		8	Ø16*	4	Ø16**	104.3	111	72.8	79.5	12.9	12.9	68.4	68.4
GBE1350/138/4		8	Ø16*	4	Ø16**	110.9	118.3	79.4	86.8	12.9	12.9	79.1	79.1
GBE1500/138/4		10	Ø16*	5	Ø16**	132.6	142	101.1	110.5	12.9	12.9	89.9	89.9
GBE600/140/4	140	4	Ø16*	2	Ø16**	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/140/4		4	Ø16*	2	Ø16**	58	58	30.8	33.6	12.9	12.9	36.3	36.3
GBE900/140/4		6	Ø16*	3	Ø16**	76.9	81.1	45.4	49.6	12.9	12.9	47	47
GBE1050/140/4		6	Ø16*	3	Ø16**	85.2	90.2	53.7	58.6	12.9	12.9	57.7	57.7
GBE1200/140/4		8	Ø16*	4	Ø16**	104.3	111	72.8	79.5	12.9	12.9	68.4	68.4
GBE1350/140/4		8	Ø16*	4	Ø16**	110.9	118.3	79.4	86.8	12.9	12.9	79.1	79.1
GBE1500/140/4		10	Ø16*	5	Ø16**	132.6	142	101.1	110.5	12.9	12.9	89.9	89.9
GBE600/160/4	160	4	Ø16*	2	Ø16**	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/160/4		4	Ø16*	2	Ø16**	58	58	30.8	33.6	12.9	12.9	36.3	36.3
GBE900/160/4		6	Ø16*	3	Ø16**	76.9	81.1	45.4	49.6	12.9	12.9	47	47
GBE1050/160/4		6	Ø16*	3	Ø16**	85.2	90.2	53.7	58.6	12.9	12.9	57.7	57.7
GBE1200/160/4		8	Ø16*	4	Ø16**	104.3	111	72.8	79.5	12.9	12.9	68.4	68.4
GBE1350/160/4		8	Ø16*	4	Ø16**	110.9	118.3	79.4	86.8	12.9	12.9	79.1	79.1
GBE1500/160/4		10	Ø16*	5	Ø16**	132.6	142	101.1	110.5	12.9	12.9	89.9	89.9
GBE600/162/4	162	4	Ø16*	2	Ø16**	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/162/4		4	Ø16*	2	Ø16**	58	58	30.8	33.6	12.9	12.9	36.3	36.3
GBE900/162/4		6	Ø16*	3	Ø16**	76.9	81.1	45.4	49.6	12.9	12.9	47	47
GBE1050/162/4		6	Ø16*	3	Ø16**	85.2	90.2	53.7	58.6	12.9	12.9	57.7	57.7
GBE1200/162/4		8	Ø16*	4	Ø16**	104.3	111	72.8	79.5	12.9	12.9	68.4	68.4
GBE1350/162/4		8	Ø16*	4	Ø16**	110.9	118.3	79.4	86.8	12.9	12.9	79.1	79.1
GBE1500/162/4		10	Ø16*	5	Ø16**	132.6	142	101.1	110.5	12.9	12.9	89.9	89.9
GBE600/180/4	180	4	Ø16*	2	Ø16**	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/180/4		4	Ø16*	2	Ø16**	58	58	30.8	33.6	12.9	12.9	36.3	36.3
GBE900/180/4		6	Ø16*	3	Ø16**	76.9	81.1	45.4	49.6	12.9	12.9	47	47
GBE1050/180/4		6	Ø16*	3	Ø16**	85.2	90.2	53.7	58.6	12.9	12.9	57.7	57.7
GBE1200/180/4		8	Ø16*	4	Ø16**	104.3	111	72.8	79.5	12.9	12.9	68.4	68.4
GBE1350/180/4		8	Ø16*	4	Ø16**	110.9	118.3	79.4	86.8	12.9	12.9	79.1	79.1
GBE1500/180/4		10	Ø16*	5	Ø16**	132.6	142	101.1	110.5	12.9	12.9	89.9	89.9
GBE600/186/4	186	4	Ø16*	2	Ø16**	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/186/4		4	Ø16*	2	Ø16**	58	58	30.8	33.6	12.9	12.9	36.3	36.3
GBE900/186/4		6	Ø16*	3	Ø16**	76.9	81.1	45.4	49.6	12.9	12.9	47	47
GBE1050/186/4		6	Ø16*	3	Ø16**	85.2	90.2	53.7	58.6	12.9	12.9	57.7	57.7
GBE1200/186/4		8	Ø16*	4	Ø16**	104.3	111	72.8	79.5	12.9	12.9	68.4	68.4
GBE1350/186/4		8	Ø16*	4	Ø16**	110.9	118.3	79.4	86.8	12.9	12.9	79.1	79.1
GBE1500/186/4		10	Ø16*	5	Ø16**	132.6	142	101.1	110.5	12.9	12.9	89.9	89.9
GBE600/200/4	200	4	Ø16*	2	Ø16**	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/200/4		4	Ø16*	2	Ø16**	58	58	30.8	33.6	12.9	12.9	36.3	36.3
GBE900/200/4		6	Ø16*	3	Ø16**	76.9	81.1	45.4	49.6	12.9	12.9	47	47
GBE1050/200/4		6	Ø16*	3	Ø16**	85.2	90.2	53.7	58.6	12.9	12.9	57.7	57.7
GBE1200/200/4		8	Ø16*	4	Ø16**	104.3	111	72.8	79.5	12.9	12.9	68.4	68.4
GBE1350/200/4		8	Ø16*	4	Ø16**	110.9	118.3	79.4	86.8	12.9	12.9	79.1	79.1
GBE1500/200/4		10	Ø16*	5	Ø16**	132.6	142	101.1	110.5	12.9	12.9	89.9	89.9
GBE600/210/4	210	4	Ø16*	2	Ø16**	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/210/4		4	Ø16*	2	Ø16**	58	58	30.8	33.6	12.9	12.9	36.3	36.3
GBE900/210/4		6	Ø16*	3	Ø16**	76.9	81.1	45.4	49.6	12.9	12.9	47	47
GBE1050/210/4		6	Ø16*	3	Ø16**	85.2	90.2	53.7	58.6	12.9	12.9	57.7	57.7
GBE1200/210/4		8	Ø16*	4	Ø16**	104.3	111	72.8	79.5	12.9	12.9	68.4	68.4
GBE1350/210/4		8	Ø16*	4	Ø16**	110.9	118.3	79.4	86.8	12.9	12.9	79.1	79.1
GBE1500/210/4		10	Ø16*	5	Ø16**	132.6	142	101.1	110.5	12.9	12.9	89.9	89.9
GBE600/220/4	220	4	Ø16*	2	Ø16**	34.5	34.5	19.3	21.2	12.9	12.9	25.6	25.6
GBE750/220/4		4	Ø16*	2	Ø16**	58	58	30.8	33.6	12.9	12.9	36.3	36.3
GBE900/220/4		6	Ø16*	3	Ø16**	76.9	81.1	45.4	49.6	12.9	12.9	47	47
GBE1050/220/4		6	Ø16*	3	Ø16**	85.2	90.2	53.7	58.6	12.9	12.9	57.7	57.7
GBE1200/220/4		8	Ø16*	4	Ø16**	104.3	111	72.8	79.5	12.9	12.9	68.4	68.4
GBE1350/220/4		8	Ø16*	4	Ø16**	110.9	118.3	79.4	86.8	12.9	12.9	79.1	79.1
GBE1500/220/4		10	Ø16*	5	Ø16**	132.6	142	101.1	110.5	12.9	12.9	89.9	89.9

As dimensões apresentadas na tabela acima são, meramente, exemplos. É possível fabricar e justificar outras dimensões a nível das cargas.

Os valores caraterísticos publicados correspondem a madeira suportada da classe GL24.
**Os parafusos utilizados são os de Ø 16 mm da classe 4.6 e 5.8.

Deve verificar-se a resistência das ancoragens no elemento de betão.

Instalação

Fixações

Em elemento suportado :

Parafusos Ø 16 mm.

Em elemento de suporte :
Elemento de madeira :

Parafusos Ø 16 mm.

Elemento de betão :

Cavilha mecânica : Ø 16 mm, por exemplo um perno WA M16-110/5.

Instalação

Em madeira :

Delinear a localização da viga suportada no suporte.
Posicionar o suporte e fixar previamente as abas de cada lado.
Ajustar o suporte relativamente aos traçados.
Concluir a fixação por aparafusamento em cada aba.
Posicionar a viga suportada no suporte e fixá-la através de aparafusamento ou tira-fundos.

Em betão :

Método 1 : Delinear a localização dos furos, aplicando o suporte no elemento.
Método 2 : Delinear a localização da viga no elemento, posicionar o suporte e identificar o centro dos furos.
Perfurar o elemento com uma broca adaptada.
Posicionar o suporte e fixar o elemento com pernos de ancoragem.
Posicionar a viga suportada no suporte antes de fixar através de aparafusamento ou tira-fundos.

Certification

Declarações de desempenho (DoP)

pt-dop-e06-0270-issue-6.pdf (97.83 KB)

2018-02-16

pt-dop-e06-0270-issue-5.pdf (44.71 KB)

2017-05-02

pt-dop-e06-0270-issue-4.pdf (44.75 KB)

2014-09-02

36a895d6bb22b6d0815114061482cee3d38e24f7-pdf.pdf (34.27 KB)

2013-06-20

bf4fe33d2cac263cb178a4b819896cc08ff4d61d.pdf (33.77 KB)

Homologações técnicas europeia (ETA)

eta-060270-sst-rev-8-2022-2.pdf (10.42 MB)

Seleccione um dos nossos Websites

Conexões para montagens de carpintarias

Pregos e parafusos

Ancoragens

Quik Drive®

Detalhes do produto

Imagens

Características

Matéria

Ventagens

Aplicação

Suporte

Áreas de utilização

Dados técnicos

Dimensões

Desdobrados e larguras

Dimensões e valores caraterísticos

Valores caraterísticos em suportes laminada colada GL24

Valores caraterísticos em elemento de betão

Instalação

Instalação

Fixações

Instalação

Certification

Declarações de desempenho (DoP)

Homologações técnicas europeia (ETA)

Produtos relacionados

Parafuso para vigamento

Parafuso para conectores de aço sobre madeira

Perno de ancoragem opção 7

GBE1050/104/4

GBE1050/114/4

GBE1050/138/4

GBE1050/162/4

GBE1050/186/4

GBE1050/210/4

GBE1050/90/4

GBE1200/104/4

GBE1200/114/4

GBE1200/138/4

GBE1200/162/4

GBE1200/186/4

GBE1200/210/4

GBE1200/90/4

GBE1350/138/4

GBE1350/140/4

GBE1350/160/4

GBE1350/162/4

GBE1350/180/4

GBE1350/186/4

GBE1350/200/4

GBE1350/210/4

GBE1350/220/4

GBE1500/138/4

GBE1500/140/4

GBE1500/160/4

GBE1500/162/4

GBE1500/180/4

GBE1500/186/4

GBE1500/200/4

GBE1500/210/4

GBE1500/220/4

GBE600/104/4

GBE600/114/4

GBE600/138/4

GBE600/162/4

GBE600/186/4

GBE600/210/4

GBE600/90/4

GBE750/104/4

GBE750/114/4

GBE750/138/4

GBE750/162/4

GBE750/186/4

GBE750/210/4

GBE750/90/4

GBE900/104/4

GBE900/114/4

GBE900/138/4

GBE900/162/4
