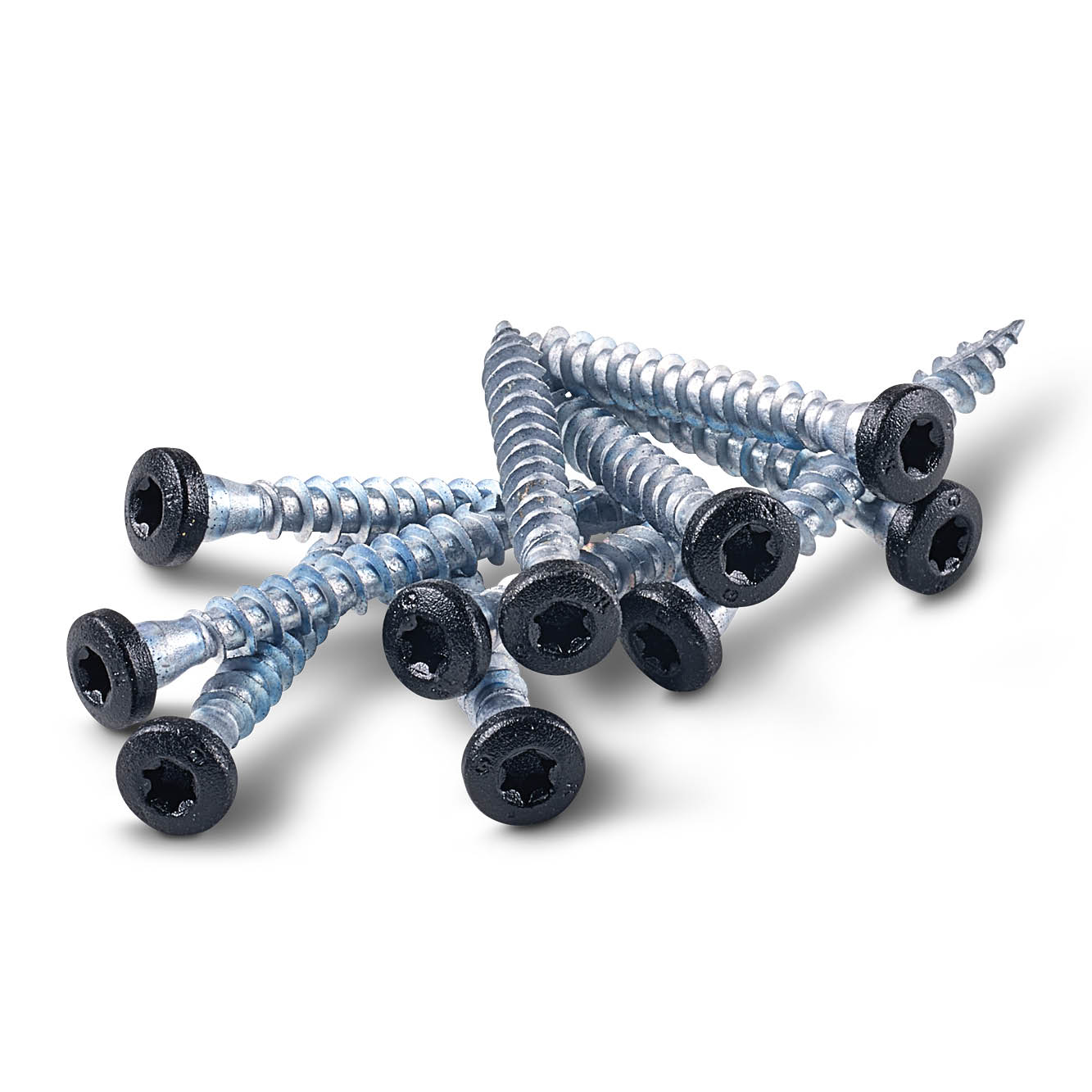

CSA-ZPB

Design Series Connector Screws - Impreg® + Paint in Black

CSA connector screw is developed for mounting of steel connectors to timber.

The conical head secures fully contact to the connector which increases the transfer of force. A fixed connection with larger cross-bearing capacity than for standard screws is obtained. The torx helps to fix the screw during insertion.

The black painted head ensure aesthetic finish with Design series connectors

Marcação CE
Impreg® +
Exterior

Detalhes do produto

Imagens

Características

Material

  • Steel quality: Carbon steel
  • Corrosion protection: Impreg®+
  • Black painted head

Torx

  • Torx 20 bit

Aplicação

When to use

  • Fixing of black connectors from Design Series
  • Black Joisthanger

Assemblies

Main beam / Secondary beam: solid wood, composite lumber, glued laminated wood

Dados técnicos

Dimensões

Product dimensions and capacities

Referência DB nr. Fastener dimensions [mm] Characteristic capacities - Timber C24 acc to ETA-04/0013 [kN] Qty per blister Qty/box
d l dh d1 lg bit Rlat.k Rax.k
CSA5.0X40ZPB23911395408.33.1534T-202.32.5-100

Instalação

Technical Notes

Benefits

  • The thread is developed for timber and ensures a light and quick running into the timber
  • The timber does not crack
  • The conical shape under the head allow a full contact of the screw with the hole.
  • The Impreg®+ coating allow the use of these screws in outdoor condition
  • The black painted head fits with black Design Series connectors

Certification

Declarações de desempenho (DoP)

Homologações técnicas europeia (ETA)
